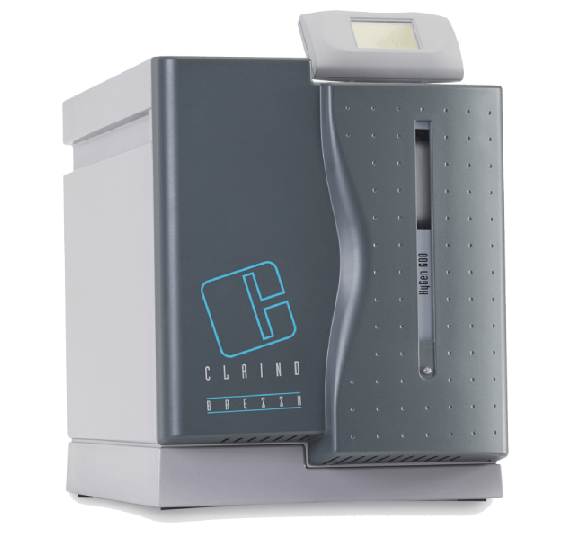

Hydrogen Gas Generator
| Hydrogen Generator available in three models for 200-400-600 Nml/min flows with > 99.9999% purity | Designed for Carrier Gas in GC, GC-MSD and “FAST GC” |
| Safety system with acoustic alarms, screen messages and automatic production stoppage in case of gas leaks | Automatic switch with inert gas available in case of production stoppage |
| Removable water tank for easy cleaning and water change | Maintenance: low cost consumables with easy replacement |
| Hydrogen production in proportion to consumption, with minimum gas storage inside the instrument | Parallel connection up to 4 stackable tower configuration generators |
| CPU with Touch Screen Display that can be linked to the generators with CAN-BUS, allowing monitoring of the operating status and menu reading with the maintenance status, the alarm report and functional parameters |
| FLOW RATE | 200/400/600 Nml/min ± 10% a 2000 m slm (possibility to connect in parallel up to 4 stacked generators) |
| TECHNOLOGIES EMPLOY | HT PEM electrolytic cell |
| OUTPUT PRESSURE | 2 - 8 bar ± 3% /30 - 116 psi ± 3% |
| PURITY | 99.9999% Oxygen < 1 ppm |
| MOISTURE’ | Better than -70° C dew-point ATP at 20°C |
| REQUIREMENTS OF DEMINERALIZED WATER | Required resistivity >1 MΩ cm @25°C; ASTM Type II Advised resistivity >10 MΩ cm @25°C; ASTM Type I |
| ELECTRICAL SUPPLY | 115/230 VAC (+/– 10%) 50-60 Hz H200: 110W H400: 180W H600: 250W |
| INDEX OF PROTECTION | IP20 |
| NOISE | < 50 dBA |
| OPERATING TEMPERATURE | 5°C - 35°C / 40°F - 95°F |
| ENVIRONMENTAL HUMIDITY | max 90% without condensation |
| MAX ALTITUDE | 2000 m slm |
| DIMENSIONS | Height: 40 cm + 7 cm (base) /15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8” |
| WEIGHT | 30 kg/67 lbs |
| PNEUMATIC CONNECTIONS | Hydrogen output : G 1/8” female AISI 316 Exhaust: quick coupling for plastic pipe 4 mm Input demineralized water: flexible hose with ¼” connection |
