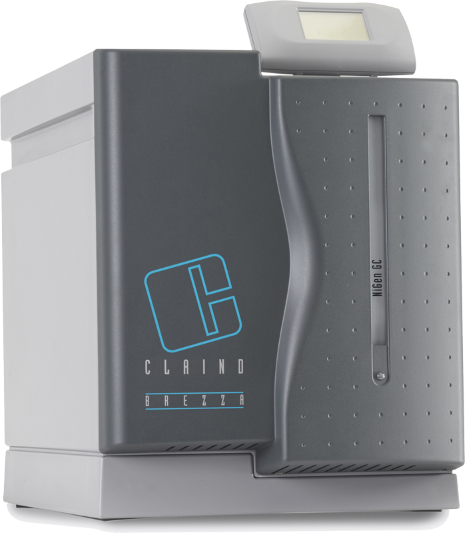

Nitrogen Generator
| Nitrogen Generator available in basic and HC version so the hydrocarbons can be completely removed using the Pt/Pd catalyzerCapable of distributing 500Nml/min with > 99.9995% purity | Capable of supporting up to 12 make up FID/ NPD, up to 7 ECD or 5 S/S |
| Ready to be connected to the dedicated AirComp compressor | Parallel connection up to 4 stackable tower configuration generators |
| CPU with Touch Screen Display, which can be linked to the generators with CAN-BUS, allows monitoring of the operating status and menu reading with the maintenance status, the alarm report and functional parameters | UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT < 0.05 ppm for applications with high-sensivity detectors) |
| FLOW RATE | 500 Nml/min ± 10% a 2000 m asl |
| TECHNOLOGY | PSA CLAIND |
| OUTPUT PRESSURE | 0 - 6 bar/0 - 87 psi ± 3% |
| PURITY | > 99.9995 % |
| MOISTURE | < -50 °C dew-point ATP ± 2°C ATP |
| AIR INPUT CHARACTERISTICS | Particulate ≤ 0.01 mm Oil vapors ≤ 0.01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min |
| ELECTRICAL SUPPLY x NiGen GC | 115/230 Vac ±10% 60-50 Hz 50 w |
| ELECTRICAL SUPPLY x NiGen GC HC | 115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W |
| INDEX OF PROTECTION | IP20 |
| NOISE | < 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle |
| OPERATING TEMPERATURE | 5°C - 40°C/40°F - 100°F |
| ENVIRONMENTAL HUMIDITY | max 90% without condensation |
| MAX ALTITUDE | 2000 m asl |
| DIMENSIONS | Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8” |
| WEIGHT | GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs |
| PNEUMATIC CONNECTIONS | Compressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female |
