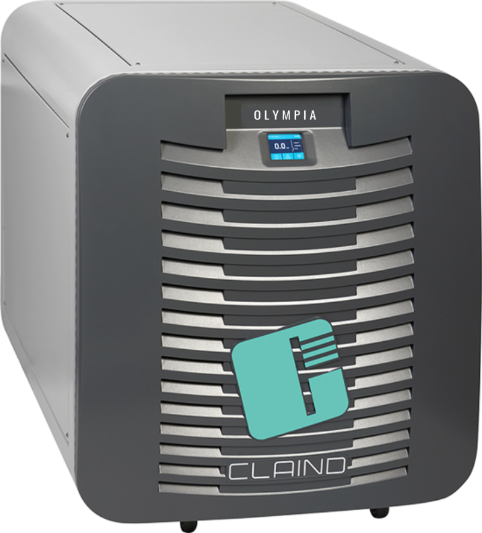

| Provides up to 190 Nl/min of compressed with 9.5 bar pressure | Silent: noise level reduced to a minimum thanks to special soundproof and anti vibration devices |
| Scroll Oil Free Compressor | Speed controlled electronically from the compressor head to save energy and reduce maintenance |
| Monophase power supply 230 Vac 50/60 Hz | Output Dew Point up to - 60°C |
| Internal tank and possibility of adding an external one | All control devices are compact and complete |
| Integrated with MOD-BUS and MQTT communication protocols that allow remote controls from PC or smart phone, and monitoring of the generator’s functional parameters in real time | Remote Control: Remote connection to any device with the IoT Claind4You platform |
|
FLOW RATE |
190 Nl/min (210 l/min FAD) @ 7 bar |
|
TECHNOLOGIES EMPLOYED |
Oil free SCROLL compressor |
|
OUTPUT PRESSURE |
6 ÷ 9.5 bar |
|
AIR OUTPUT CHARACTERISTICS |
Particulate = 0.01 mm Moisture up to -60°C Dew point ATP @ 9.5bar 50Nl/min |
|
ELECTRICAL SUPPLY |
230 Vac ± 10% 50/60 Hz 2.5kW |
|
INDEX OF PROTECTION |
IP20 |
|
NOISE |
Minimum: 54 dBA Medium: 58 dBA |
|
OPERATING TEMPERATURE |
5°C - 40°C/40°F - 100°F |
|
STORAGE TEMPERATURE |
5°C - 50°C/40°F - 125°F |
|
ENVIRONMENTAL HUMIDITY |
max 90% without condensation |
|
MAX ALTITUDE |
Tested up to 2000 m from the sea level |
|
DIMENSIONS |
L x D x H cm 68 x 83 x 79.5 27.8” x 32.5” x 31.5” |
|
WEIGHT |
148 kg/330 lbs |
|
ENVIRONMENT HEAD DISPERDED |
2340 J/sec |
|
PNEUMATIC CONNECTIONS |
N. 2 Purified air output: G1/2” female Condensate drain PVC pipe Øe 9 mm and collection tank |
|
ELECTRICAL CONNECTION |
5 mt power supply cable; Plug IEC309, 2-poles plus blue earth 32° IP44 according to standards IEC 60309-1 and IEC 60309-2 |
|
DATA CONNECTOR |
Ethernet MQTTS, MOD- BUS data communication protocol; RJ45 cable - WiFi |
