Gas Generator

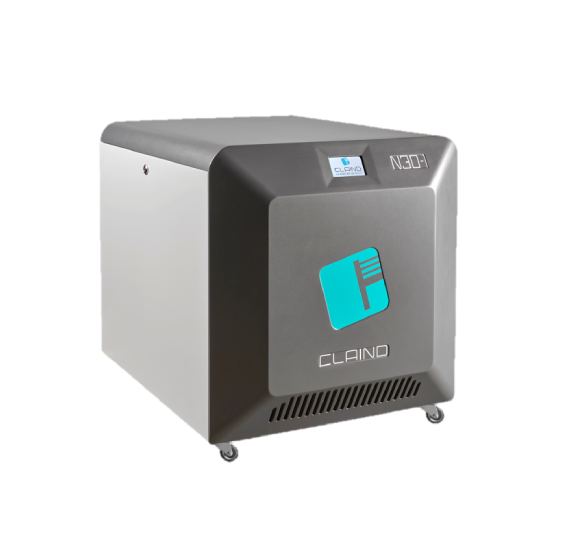

PLINIUS N30-1 UHP up to 3000 Nml/min With built-in Oil Free compressor

Remote Control: Remote connection to any device with the IoT Claind4You platform Equipped with special soundproof and anti-vibration devices
2 internal air and nitrogen tanks that allow fewer internal air compressor interventions, reducing both noise and maintenance Compressor maintenance required after only 16,000 hours of work
Touch screen display that allows monitoring of the operating status and menu reading with the maintenance status, the alarm report and functional parameters Integrated with MOD- BUS over TCP data communication protocol, RJ45 cable and WiFi, that allow remote controls from PC or smartphone, and monitoring of the generator’s functional parameters in real time through the Claind4You IoT platform
PLINIUS N30-1 UHP

NITROGEN & COMPRESSED AIR FLOW RATE

N2 Up to  3000 Nml/min        AIR : Up to 32 l/min

NITROGEN & AIR  OUTPUT PRESSURE

6 ÷ 8 bar

NITROGEN & AIR  OUTPUT PURITY

N2 Up to 99.9995%                   AIR : ISO 8573-1 Class 1.7.1

AIR COMPRESSOR

Built-in Oil free compressor

ELECTRICAL SUPPLY

230 Vac ± 10% 50 Hz  900 W

PROTECTION INDEX

IP20

NOISE

Minimum: 50 dBA    Medium: 58 dBA

OPERATING TEMPERATURE

5°C - 35°C/40°F - 100°F

STORAGE TEMPERATURE

5°C - 50°C/40°F - 125°F

ENVIRONMENTAL HUMIDITY

max 90% without condensation

MAX ALTITUDE

Up to 2000 m from the sea level

DIMENSIONS

L x D x H cm 72.5 x 89 x 80.5       28.5” x 35” x 31.7”

WEIGHT

130 kg/287 lbs

THERMAL DISPERSION

1000 J/sec

PNEUMATIC CONNECTIONS

Nitrogen and air outlet G1/2” female

Condensate drain plastic pipe Øe 6 mm

ELECTRICAL CONNECTION

1.6 mt power supply cable with Standard connections IEC320 C20

DATA CONNECTOR

Ethernet, MOD- BUS over TCP data communication protocol; RJ45 cable – WiFi

Suitable for: multiple GC installation and all analysers looking for Ultra High Purity Nitrogen
