Oxygen Analyzers

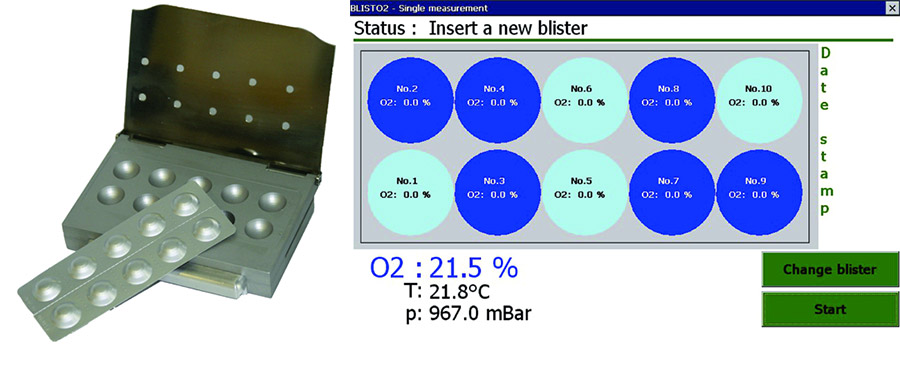

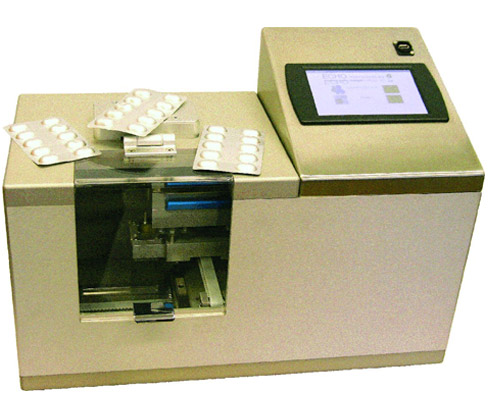

Blist O2 is automac device for measuring O2 concentraon in blister packs. The device provides reliable, accurate and reproducible analysis that eliminates possibility of human errors. The measuring procedure is simple, fast and efficient. The user interface is designed for easy operaon. The operator selects the required type of analysis, i.e. single point analysis of one blister pack or series analysis. A stascal analysis report is automacally generated by the so..ware. The special designed blister cartridge enables fast and precise measurements of different types of blister packs. The intelligent, patented measuring head enables automac calibraon and self-controlled sensor status. The system prolongs sensor’s life span because the special sensor head prevents sensor damages.


Opcal sensors with opcal transmier installed combined with intelligent so..ware instantly measure the O2 concentraon in very small headspaces in blister packs.


  • Pharmacy: O2 concentraon in blisters and vials (custom design);
  • Food & Beverage: Coffee capsules (custom design).


  • No sample extracon;
  • High accuracy and precision;
  • No O2 consumpon during measurement;
  • IQ & OQ Documentaon;
  • Automac calibraon.

Technical specifications

  • Measuring range: 0-50% O2;
  • Accuracy: +/- 0,1 % O2;
  • Limit of detection: 0,1% O2;
  • Operating temperature range: 5-40 C;
  • High precision positioning: < 0,02 mm;
  • Dimensions: 600 x 315 x 385 mm, Weight: 50 kg;
  • Interface: USB, RS485, Ethernet.
