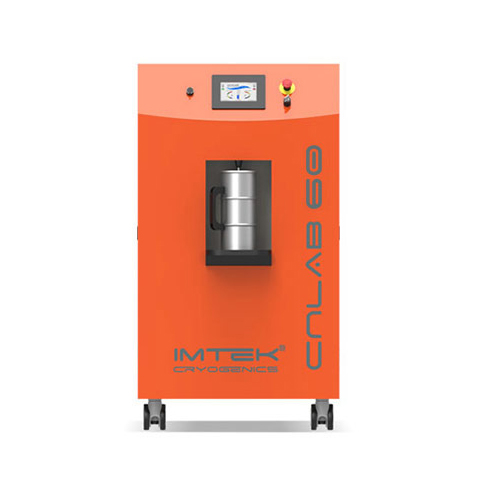

Cryogenic Nitrogen Labstation - CNLab 60
| Production Rate ≥ 60 Liter/Day (≥ 64 Lt/Day @ °C) |
Dewar Volume 120 Liter (200 Lt optional) |
| Purity ≥ 99% | Compressed Air Requirement Built-in Oil-free Compressor External Compressor (optional) |
| Cooling Water Flow Rate 9 Liter/min @ 4 bar | Electrical Options 380/400/415VAC, 3Ph, 50Hz, 480VAC, 3 Ph, 60 Hz |
| Power Consumption 7kW @ 50Hz (8kW @ 50Hz) 8kW @ 60Hz (9kW @ 50Hz) | Human Machine Interface 6” Color Graphic Touch Screen |
| Operating Pressure 1.5 bar | Noise Level < 65 dB @ 1 meter |
| Dimensions (WxLxH) 830mm x 1495mm x 1388mmmm | Weight 450 kg (Empty) / 550 kg (Full) |
