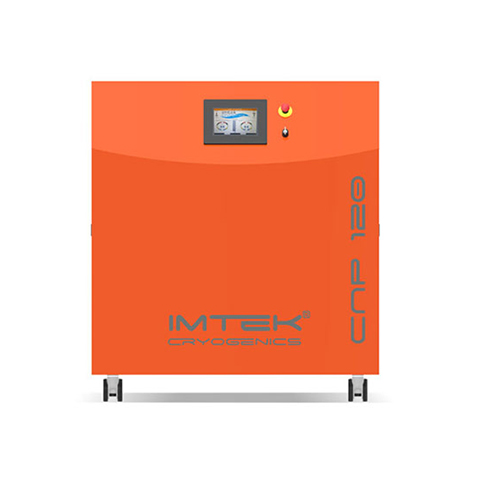

Cryogenic Nitrogen Plant - CNP 120
| Production Rate ≥ 120 liter/day (≥ 128 Lt/Day @ 23 °C) |
Dewar Volume 250 liter (500 Lt optional) |
| Purity ≥ 99% | Compressed Air Requirement ~ 15 m3/hour @ 7 bar |
| Cooling Water Flow Rate 18 Liter/min @ 4 bar | Electrical Options 380/400/415VAC, 3Ph, 50Hz, 480VAC, 3 Ph, 60 Hz |
| Power Consumption 14kW @ 50Hz 16kW @ 60Hz | Human Machine Interface 8” Color Graphic Touch Screen |
| Operating Pressure 2.0 bar | Noise Level < 65 dB @ 1 meter |
| Dimensions (WxLxH) 1290mm x 2150mm x 1370mm | Weight 800 kg (Empty) / 1000 kg (Full) |
