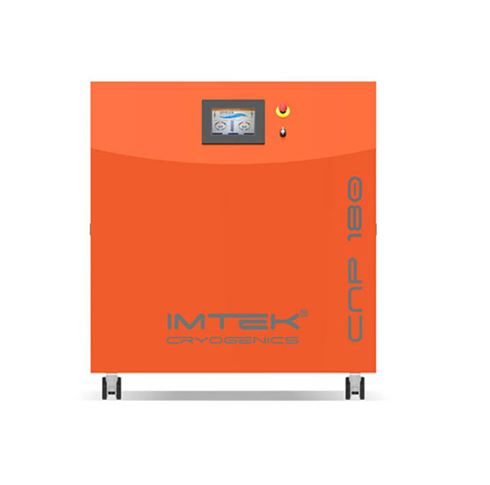

Cryogenic Nitrogen Plant - CNP 180
| Production Rate ≥ 180 liter/day (≥ 192 l/day @ 23°C) |
Dewar Volume 360 liter (500/1000 lt optional) |
| Purity ≥ 99% | Compressed Air Requirement ~ 22.5 m3/hour @ 7 bar |
| Cooling Water Flow Rate 27 liter/min @ 4 bar | Electrical Options 380/400/415VAC, 3Ph, 50Hz, 480VAC, 3 Ph, 60 Hz |
| Power Consumption 21kW @ 50Hz 24kW @ 60Hz | Human Machine Interface 8” Color Graphic Touch Screen |
| Operating Pressure 2.0 bar | Noise Level < 65 dB @ 1 meter |
| Dimensions (WxLxH) 1245mm x 2600mm x 1388mm | Weight 1000 kg (Empty) / 1300 kg (Full) |
