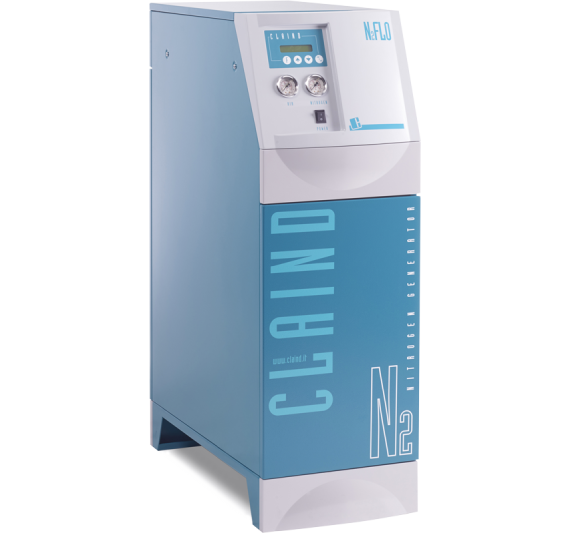

Plant Level Nitrogen Generator - Flo
| Purity analyser and pressure regulator: fitted as standard to allow real-time monitoring of the purity of the nitrogen supplied. | digital control system: that can be interfaced with company IT systems (e.g. plc or scada). |
| single nitrogen storage tank: for the operation and storage of the nitrogen produced, avoiding the buffer tank. | energy saving mode: if the nitrogen used is less than the amount produced, the generator automatically goes into stand-by mode, thus allowing energy savings. |
| E941 food purity: option of different calibrations in order to meet specific customer needs. | continuous monitoring of compressed air quality: a humidity and oil particle analyser mounted on the suction line prevents impurities from passing through, which could compromise the operation of the generator and the quality of the gas produced. |
|
MODELS |
Outgoing nitrogen flow* [Nm3/h] |
||||||
|
Purity |
99.999% |
99.99% |
99.9% |
99.5% |
99% |
98% |
97% |
|
N2 FLO1 |
0.2 |
0.4 |
0.9 |
1.5 |
2 |
2.4 |
2.8 |
|
N2 FLO2 |
0.5 |
0.8 |
1.8 |
2.9 |
3.6 |
4.6 |
5.3 |
|
N2 FLO3 |
0.7 |
1.2 |
2.6 |
4.3 |
5.3 |
6.7 |
7.8 |
|
N2 FLO4 |
1 |
1.7 |
3.7 |
5.8 |
7.2 |
9.1 |
10.6 |
