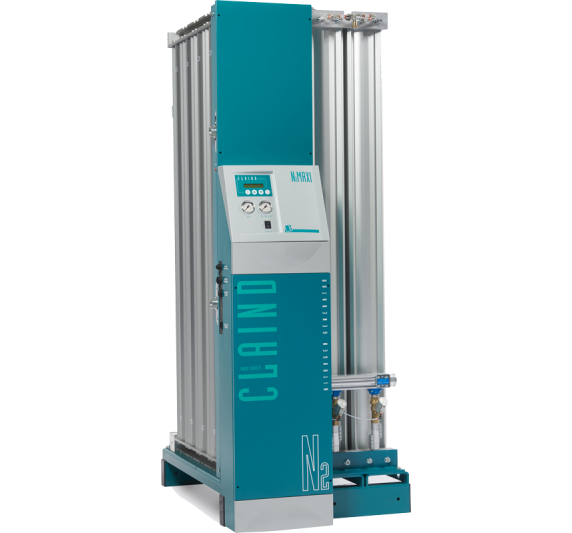

Plant Level Nitrogen Generator - Maxi
| Purity analyser and pressure regulator: fitted as standard to allow real-time monitoring of the purity of the nitrogen supplied. | digital control system: that can be interfaced with company IT systems (e.g. plc or scada). |
| single nitrogen storage tank: for the operation and storage of the nitrogen produced, avoiding the buffer tank. | energy saving mode: if the nitrogen used is less than the amount produced, the generator automatically goes into stand-by mode, thus allowing energy savings. |
| E941 food purity: option of different calibrations in order to meet specific customer needs. | continuous monitoring of compressed air quality: a humidity and oil particle analyser mounted on the suction line prevents impurities from passing through, which could compromise the operation of the generator and the quality of the gas produced. |
MODELS | Outgoing nitrogen flow* [Nm3/h] | ||||||
Purity | 99.999% | 99.99% | 99,9% | 99.5% | 99% | 98% | 97% |
N2 MAXI1 | 6.2 | 9 | 18.7 | 31.1 | 39.1 | 49.7 | 55.9 |
N2 MAXI2 | 12.4 | 18 | 37.4 | 62.1 | 78.7 | 98.9 | 111.3 |
N2 MAXI3 | 18.6 | 27 | 56.1 | 93.2 | 117.9 | 149 | 166.8 |
N2 MAXI4 | 24.8 | 36 | 74.8 | 124.2 | / | / | / |
