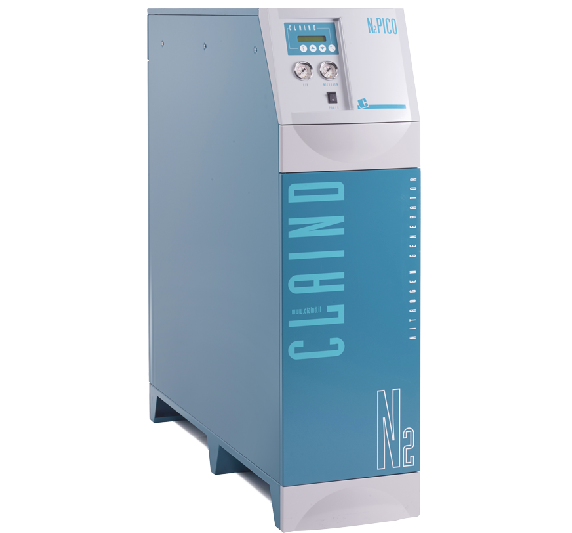

Plant Level Nitrogen Generator - Pico
| Purity analyser and pressure regulator: fitted as standard to allow real-time monitoring of the purity of the nitrogen supplied. | digital control system: that can be interfaced with company IT systems (e.g. plc or scada). |
| single nitrogen storage tank: for the operation and storage of the nitrogen produced, avoiding the buffer tank. | energy saving mode: if the nitrogen used is less than the amount produced, the generator automatically goes into stand-by mode, thus allowing energy savings. |
| E941 food purity: option of different calibrations in order to meet specific customer needs. | continuous monitoring of compressed air quality: a humidity and oil particle analyser mounted on the suction line prevents impurities from passing through, which could compromise the operation of the generator and the quality of the gas produced |
|
MODELS |
Outgoing nitrogen flow* [Nm3/h] |
||||||
|
Purity |
99.999% |
99.99% |
99.9% |
99.5% |
99% |
98% |
97% |
|
N2 PICO3 |
1.5 |
2.5 |
5.4 |
8.6 |
10.4 |
13.8 |
16,1 |
|
N2 PICO4 |
2 |
3.3 |
6.9 |
11.5 |
15 |
18.4 |
20.7 |
|
N2 PICO5 |
2.3 |
4,0 |
9.2 |
14.4 |
18.4 |
23 |
26.5 |
|
N2 PICO6 |
3.5 |
5.0 |
10.4 |
17.3 |
21.9 |
27.9 |
31.1 |
