Gas Generator

Zero Air Generator available in double version for 5 and 20 Nl/min Excellent for FID and FPD, guarantees a clean base line with no fluctuations
Double installation capability: on workbench or wall High efficiency Platinum Palladium HC system for complete hydrocarbon (HCT < 0.1 ppm) removal at low catalysis temperatures for a stable, noise-free base line
Adapted to support from 14 up to 55 FID Can be integrated with the dedicated AirComp compressor
Catalyzer temperature indicator

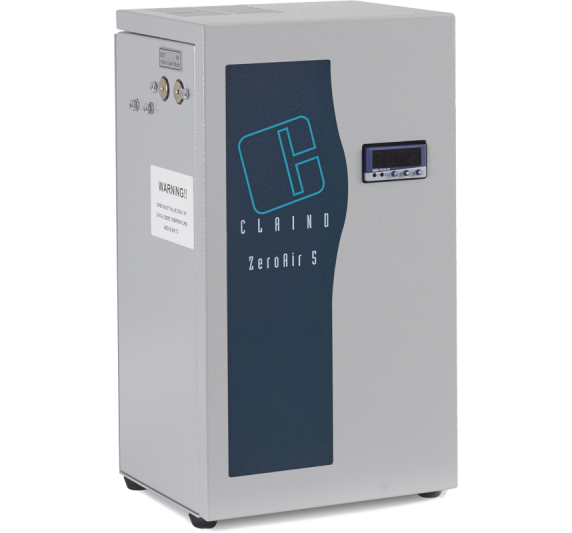

Zero Air 5

Zero Air 20

FLOW RATE ZeroAir 5: 5 Nl/min ± 10% a 2000 m asl
ZeroAir 20: 20 Nl/min ± 10% a 2000 m al
TECHNOLOGIES EMPLOY Platinum-Palladium catalytic reactor
EFFICIENCY

Total hydrocarbons residual with catalyzer < 0.1ppm
HC removal efficiency
- methane > 99%
- aromatics (btx) and ydrocarbons starting from c3hn > 99.5%
- carbon monoxide (co), hydrogen (h2 ) ethylene and propylene > 99.9%

OUTPUT PRESSURE 0 - 10 bar/0 - 145 psi ± 3%
AIR INPUT CHARACTERISTICS Particulate ≤ 0.01 mm
Oil vapors ≤ 0.01 mg/m3
Moisture ≤ -15° C dew point ATP
ELECTRICAL SUPPLY

ZeroAir 5
115 Vac ±10% 60 Hz 180W
230 Vac ±10% 50 Hz 180W

ZeroAir 20
115 Vac ±10% 60 Hz 450 W
230 Vac ±10% 50 Hz 450 W

INDEX OF PROTECTION IP20
OPERATING TEMPERATURE 5°C - 35°C (41°F - 95°F)
ENVIRONMENTAL HUMIDITY max 80% without condensation
MAX ALTITUDE 2000 m asl
DIMENSIONS Height: 35 cm/13.8”
Width: 20 cm/7.9”
Depth: 16 cm/6.3”
WEIGHT

ZeroAir 5
7 kg/15 lbs


ZeroAir 20
9 kg/20 lbs

PNEUMATIC CONNECTIONS Compressed air inlet: G 1/8” female
Purified air output: G 1/8” female
In GC as flame oxidizer in FID and FPD detectors

Process/Environmental Analysers for FID, THC, NOX, BTX and SOX
